AI Frame Grabber
AI Frame Grabber-4PE
Next-generation frame grabber cards, providing you an integrated "image acquisition + AI inspection" solution in a single card.
Upgrade/supplement existing CPU-based vision systems for higher detection accuracy and enhanced flexibility on the production line.
€1.551,95 EUR
High Usability & Accessible AI Adoption
AI Frame Grabber enables industrial users to quickly build, deploy and optimize multi-camera inspection systems for automated defect detection and quality assessment. With simple setup and intuitive tools, it lowers the barrier to AI adoption and make advanced vision capabilities easily accessible.
Order now

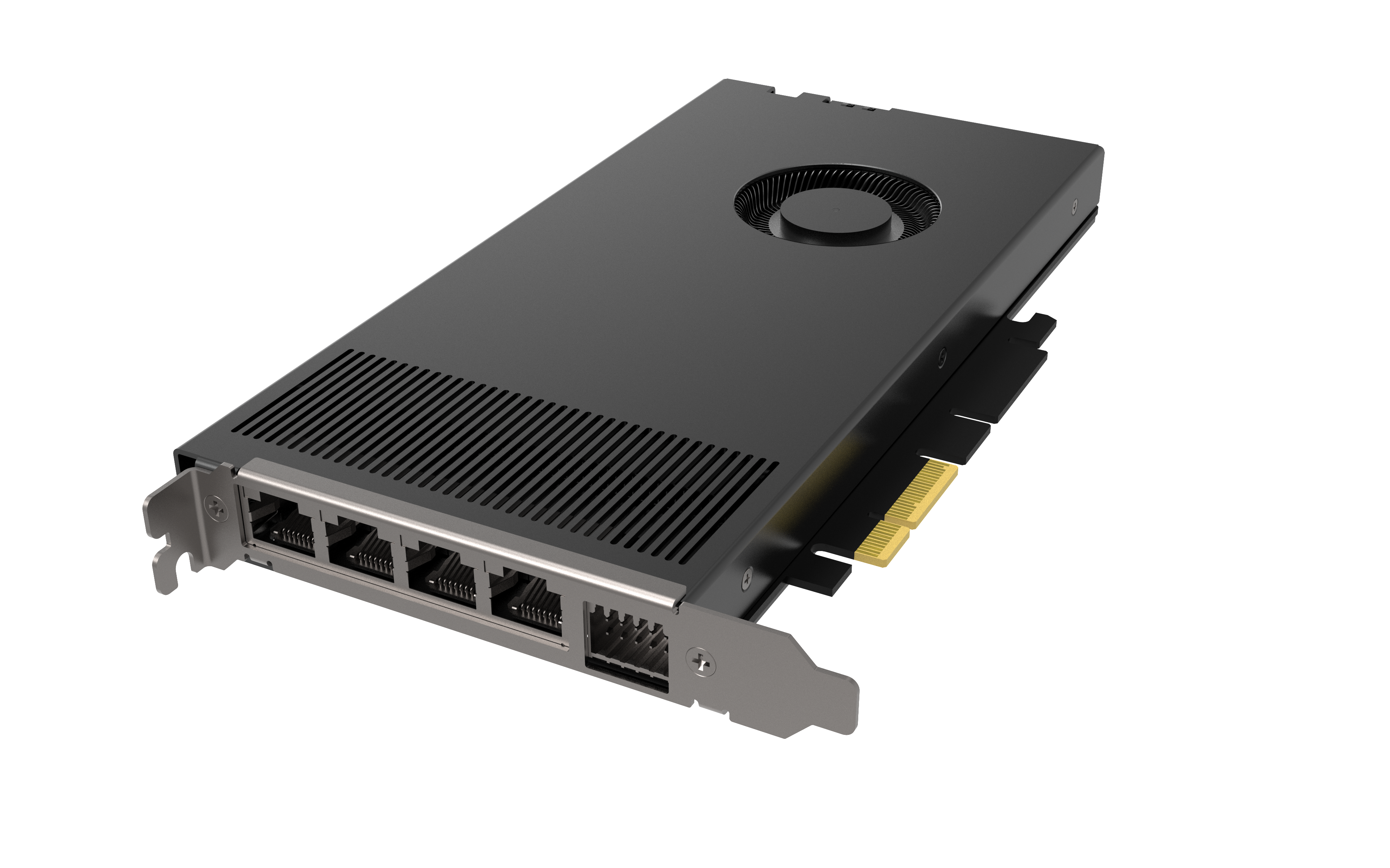

All-in-One Integrated Design
Seamlessly integrates hardware and software with built-in NPU, high-speed PoE+ ports and EVVR OS, supporting full-process local AI vision workflows. Reduces data transmission by 70%, CPU load by 80%, and keeps AI inference latency under 50ms.
Plug-and-Play Compatibility
Works seamlessly with Windows and Linux, enabling AI upgrades for existing machine vision systems without hardware replacement—ideal for intelligent production line transformation.
Accessible AI, Rapid Deployment

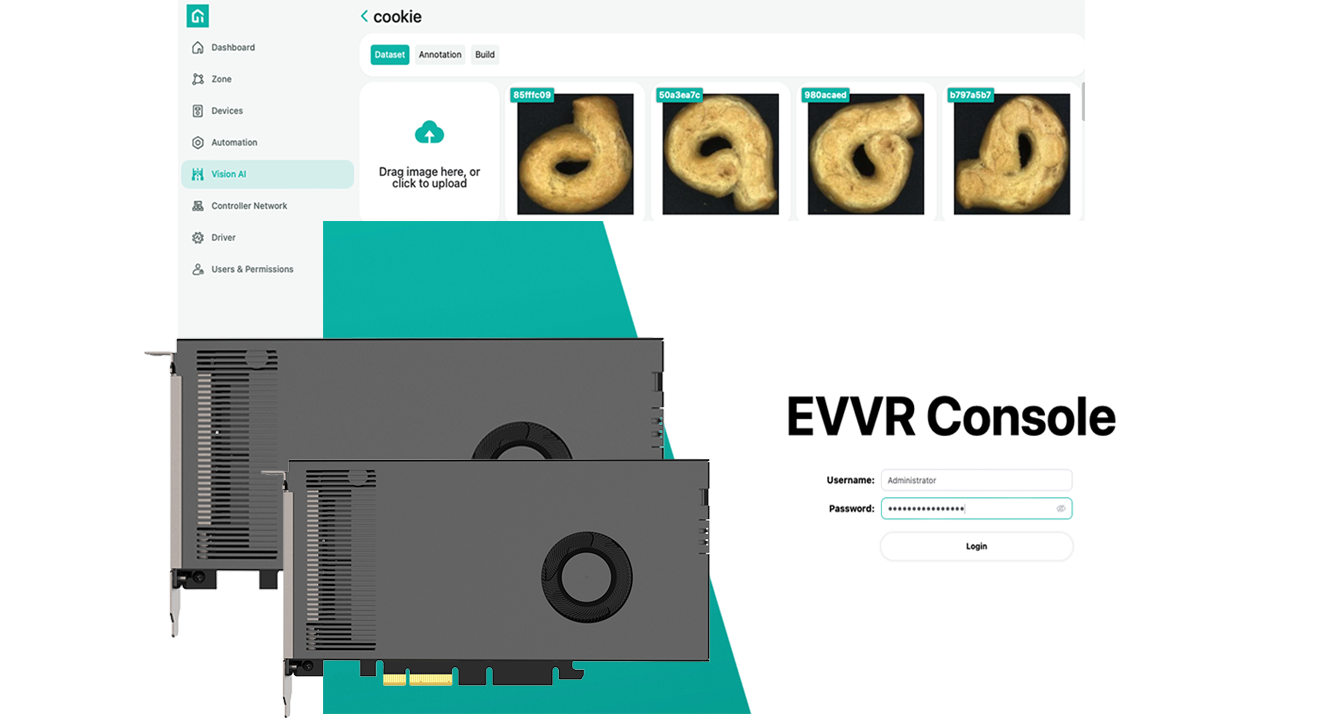

EVVR OS offers low-code/no-code vision tools and built-in pre-trained models, enabling fast AI capability integration without coding skills—cutting multi-camera system deployment from months to weeks.
Smarter Manufacturing with AI Frame Grabber
Combining cutting-edge AI and seamless integration, AI Frame Grabber transforms traditional visual inspection into intelligent, adaptive quality control. It empowers diverse industries with automated, high-precision defect detection of missing, misplaced or mixed components, ensuring reliable defect identification even in complex and fast-changing production environments.

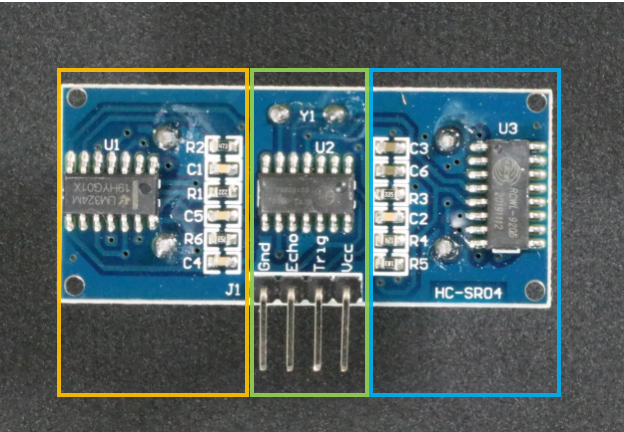

PCB
In high-speed SMT and PCB assembly, even a single misplaced or incorrect component can lead to costly rework, delays, or field failures. AI Frame Grabber supports real-time multi-camera image acquisition and edge AI processing to identify missing components, wrong parts and incorrect placements directly on the production line.
By bringing AI inspection closer to the equipment, the system responds instantly without relying on centralized servers. This helps production teams catch assembly errors early, reduce manual verification, and prevent defect propagation to downstream processes. The result is more stable output quality and fewer costly corrections.
Automotive
In automotive manufacturing, inspection systems must deliver consistent results across every station and every facility. From connectors to safety-critical assemblies, reliability and repeatability are essential. AI Frame Grabber brings AI processing closer to the production line, enabling stable, low-latency inspection while reducing reliance on centralized computing.
Its industrial-grade design supports long-term operation in demanding environments, helping manufacturers maintain uniform inspection standards, minimize unexpected downtime, and confidently support zero-defect production strategies across global operations.
.png?v=1765967326276)
Battery
Battery production combines high throughput with complex, multi-stage processes—from electrode coating to module and pack assembly. AI Frame Grabber supports synchronized multi-camera acquisition and real-time edge AI processing across extended production lines, ensuring inspection keeps pace with rapid cycle times.
By handling image processing locally, the system reduces network traffic and simplifies overall architecture. This makes large-scale deployment more manageable, supports capacity expansion, and helps maintain consistent defect detection as production scales to meet growing EV demand.
.png?v=1766038494090)
EVVR AI-powered Inspection Solutions
Integrating AI inference, PoE power supply and industrial-grade design, EVVR delivers you a cost-effective plug-and-play upgrade solution for traditional machine vision systems.
Lower Hardware Costs
Unlike conventional “frame grabber + CPU” solutions, EVVR unifies edge computing and image acquisition in a single card, reducing hardware costs by up to 40%. It is ideal for AI transformation across production lines in diverse industries.
Simplified Wiring
Equipped with 4×2.5 GbE PoE+ ports, it directly powers industrial devices, eliminating redundant cables. This cuts 80% of power wiring, reduces installation time by 50%, and minimizes wiring-related faults.
Higher Detection Precision
AI-powered deep learning achieves a 99.5% defect recognition rate and <0.1% false positive rate. Unlike traditional cards limited by rule-based detection and high miss rates for complex defects, EVVR’s built-in pre-trained models deliver reliable, automated quality control for advanced manufacturing needs.
Faster Adaptability
When products change, traditional algorithms need to be rewritten, with an adaptation cycle of 1-2 months. AI Frame Grabber enables fast and low-threshold adjustment through "model reuse + low-code operation". Only few new samples are needed to fine-tune pre-trained models via a drag-and-drop creator. (no professional algorithm skills required). Adaptation cycle is reduced to 1-3 days during product changes.
Seamless Scalability
Single-card multi-camera support (4×2.5 GbE, 10 Gbps bandwidth) ensures reliable high-throughput image acquisition. Compatible with both new and old frame grabber (no need to replace existing equipment), lowering hardware expansion costs by 60%; Additionally, standard APIs and SDKs are provided for secondary development to scale as businesses grow.
Specification
AI Frame Grabber 4P-E delivers powerful AI-driven multi-camera inspection with seamless integration, improving detection accuracy and quality control efficiency for diverse industrial automation applications.

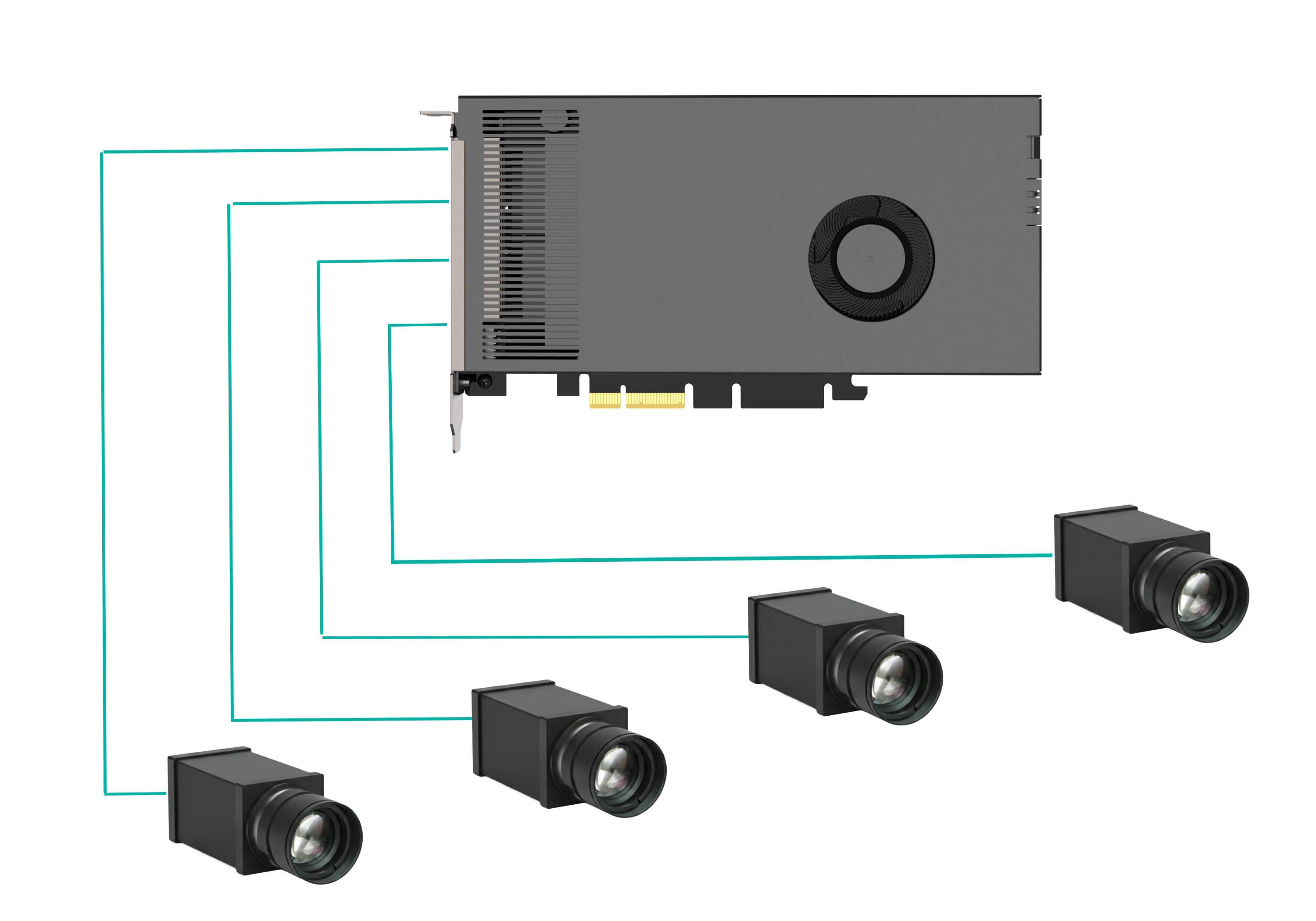

Deployment I/O Interface
.png?v=1763974608208)
Bus Interface
PCIe x4 Physical Interface
Link Speed: PCIe 2.0 x1 LaneLinux 3.10
PoE
4x IEEE 802.3at PoE+ Max 25.5W per port Total 50W power budget for 4 ports
Ethernet
4x 2.5G Ethernet ports
Serial Port
1x RS-232 port 1x RS-485 port1x CAN BUS Interface
Ethernet port
1x Gigabit Ethernet
USB
1x USB 2.0 port1x USB-C (OTG)
Video Port
1x DisplayPort
DC Input
12V DC power input

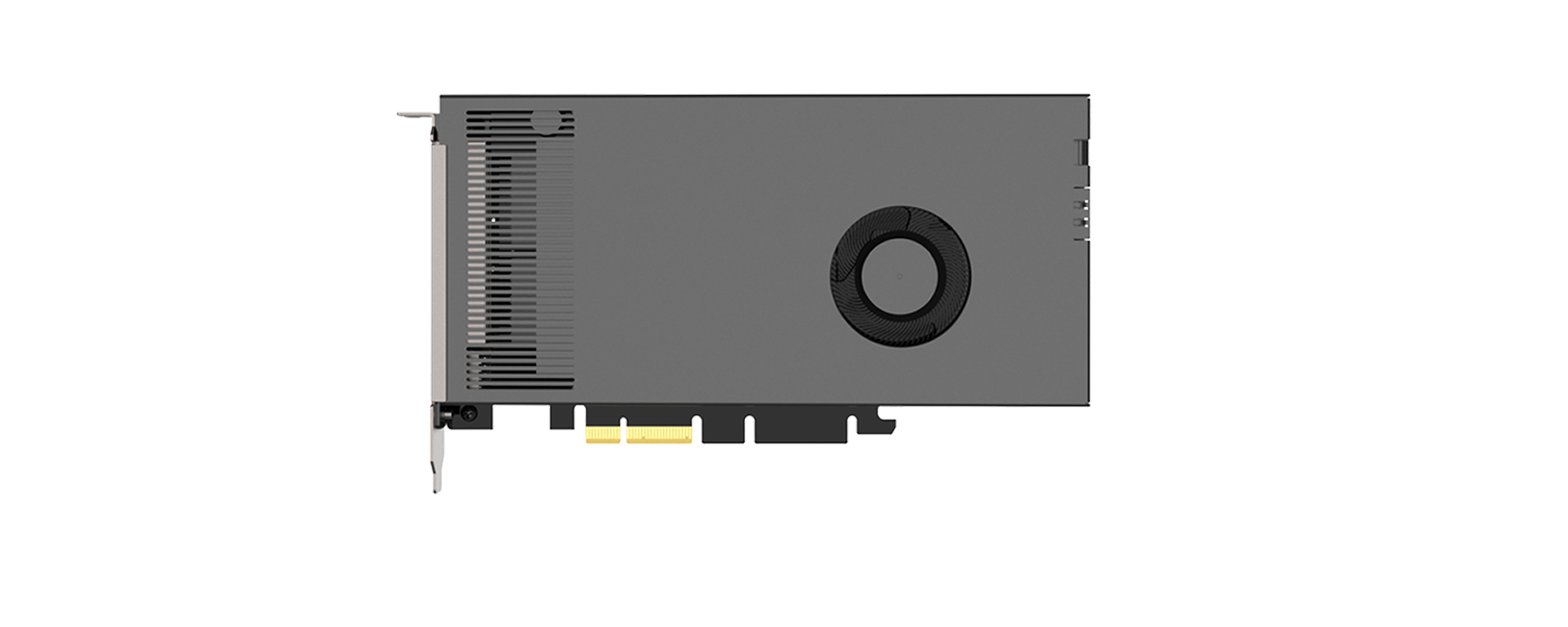

Mechanical
.png?v=1763974643052)
Form Factor
PCI Express card
Dimension
227.7 mm (W) x 111 mm (H)
Weight
TBD
Environmental
Operating Temperature
-20°C to 65°C
Storage Temperature
-20°C ~65°C
.png?v=1763974826127)
Humidity
10% to 90%RHNC
Download
FAQs
Don’t see your question answered below? Contact us today.
How difficult is the installation and initial setup for AI Frame Grabber on my existing production line?
Installation is plug-and-play and typically completed within hours. With intuitive workflow tools and built-in drivers, most users can get the system running quickly without extensive retraining or line downtime.
Does it support integration with my MES, ERP, or quality management systems?
Yes. Standard APIs and SDKs enable smooth integration with most factory IT, MES, ERP, and QMS platforms, allowing real-time data exchange and traceability.
How do I manage and label samples for new inspection tasks?
The platform includes built-in sample management tools that help organize, label, and prepare new datasets. Pre-trained models further reduce the workload for new product deployment.
How can I evaluate ROI and cost savings with AI Vision Grabbers?
By reducing hardware investment by up to 40%, minimizing wiring, and cutting adaptation time from months to days, users see rapid returns. Most customers report payback within 6–12 months through higher yield and lower labor and maintenance costs.
How difficult is the installation and initial setup for AI Frame Grabber on my existing production line?
Installation is plug-and-play and typically completed within hours. With intuitive workflow tools and built-in drivers, most users can get the system running quickly without extensive retraining or line downtime.
Does it support integration with my MES, ERP, or quality management systems?
Yes. Standard APIs and SDKs enable smooth integration with most factory IT, MES, ERP, and QMS platforms, allowing real-time data exchange and traceability.
How do I manage and label samples for new inspection tasks?
The platform includes built-in sample management tools that help organize, label, and prepare new datasets. Pre-trained models further reduce the workload for new product deployment.
How can I evaluate ROI and cost savings with AI Vision Grabbers?
By reducing hardware investment by up to 40%, minimizing wiring, and cutting adaptation time from months to days, users see rapid returns. Most customers report payback within 6–12 months through higher yield and lower labor and maintenance costs.
High Compatibility
EVVR endeavors to build an interconnected IoT ecosystem designed to harmoniously align with your current infrastructure with high compatibility in muti-protocols support and your preferred automation brands.
.png?v=1764231051776)
